| Bucket capacity | 2.2 m³ rock bucket |
| power | 233.5 kW |
| Working weight |
36,900 kg
|

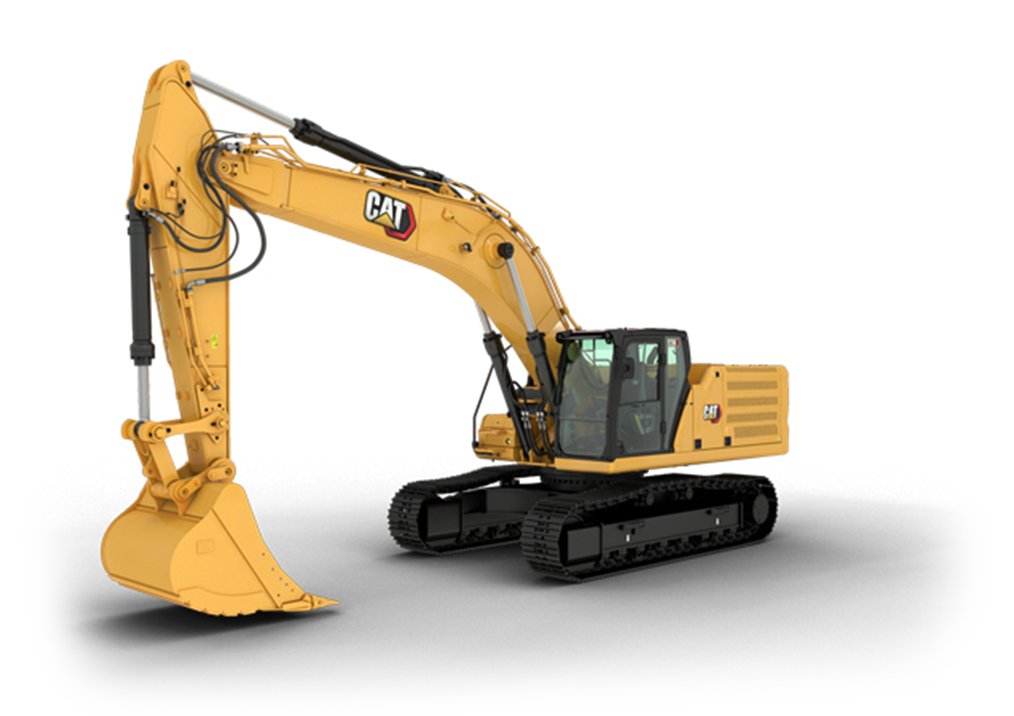

New generation CAT®336 hydraulic excavator
Why Choose Us
We have a strong mechanical team to ensure that all machines are well maintained, of high quality, and 100% original.
Spare parts are available, the most suitable for your machine.
We offer almost all types of second-hand construction machinery in good condition and at low prices.
Product Introduction
|
Engine Model
|
Cat® C7.1 TTA
|
|
Engine power
|
233.5 kW
|
|
Net power
|
223 kW
|
|
cylinder diameter
|
105 mm
|
|
stroke
|
135 mm
|
|
Displacement
|
7.01 L
|
|
Rotation speed
|
8.84 rpm
|
|
Maximum slewing torque
|
143 kN·m
|
|
Main System – Maximum Traffic (Total)
|
560 L/min (280 × 2 pumps) 148 gal/min (74 × 2 pumps)
|
|
Maximum pressure – equipment
|
35,000 kPa
|
|
Maximum pressure – driving
|
35,000 kPa
|
|
Maximum pressure – rotation
|
29,400 kPa
|
|
Fuel tank capacity
|
600 L
|
|
Cooling system
|
39 L
|
|
Hydraulic oil tank
|
161 L
|
|
Engine oil
|
25 L
|
