| Bucket Capacity: 0.11m³ |
| Machine Weight : 3800kg |
| Year: 2026 |
| Brand: LIUGONG |
| Shipping: Bulk cargo / Container/Flat Rack |

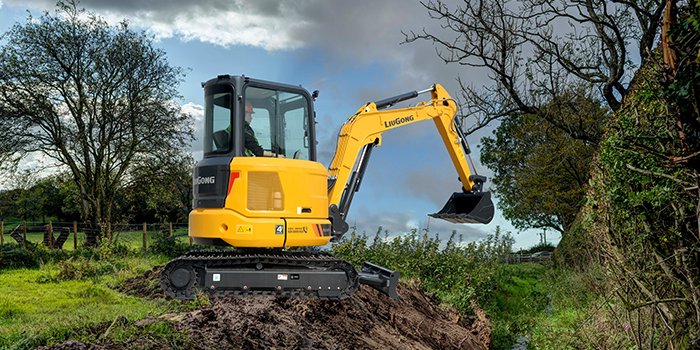

LIUGONG 9035FZTS
Why Choose Us
We have a strong mechanical team to ensure that all machines are well maintained, of high quality, and 100% original.
Spare parts are available, the most suitable for your machine.
We offer almost all types of second-hand construction machinery in good condition and at low prices.
Product Introduction
| Machine weight | 3800 kg |
| Standard bucket capacity | 0.11 m³ |
| Engine Model | 3TNV88-Z |
| Emission standards | National IV |
| Type | 3-cylinder inline, four-stroke, water-cooled, direct injection |
| Maximum torque (torque/speed) | 107.1/1600 N·m |
| Cooling method | Water cooling |
| Rotation speed | 10 r/min |
| Climbing ability | 30° |
| Grounding specific voltage | 35kPa |
| Maximum digging force of the boom (ISO) | 22 kN |
| Maximum digging force of the bucket (ISO) | 33 kN |
| Length (transportation status) | 4810/4860 mm |
| Overall width (standard track configuration) | 1700 mm |
| High (transportation status) | 2500 mm |
| Minimum ground clearance | 258 mm |
| chassis wheelbase | 1675 mm |
| Underframe gauge | 1400 mm |
| Track width (standard) | 300 mm |
| Maximum excavation height | 4710 / 4843 mm |
| Maximum excavation radius | 5385 / 5715 mm |
| Maximum excavation depth | 3085 / 3440 mm |
| Maximum unloading height | 3310 / 3463 mm |
