| Bucket Capacity: 0.55m³ |
| Machine Weight : 13500kg |
| Year: 2026 |
| Brand: LIUGONG |
| Shipping: Bulk cargo / Container/Flat Rack |

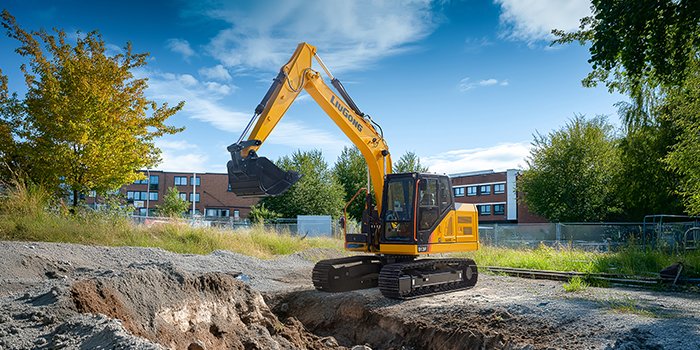

LIUGONG 913F
Why Choose Us
We have a strong mechanical team to ensure that all machines are well maintained, of high quality, and 100% original.
Spare parts are available, the most suitable for your machine.
We offer almost all types of second-hand construction machinery in good condition and at low prices.
Product Introduction
| Machine weight | 13500 kg |
| power | 92 kW@2200rpm |
| Standard bucket capacity | 0.55 m³ |
| Engine Model | Yuchai YCF36125 |
| Emission standards | National IV |
| Type | 4-cylinder inline, turbocharged, air-to-air intercooled, high-pressure common rail, electronically controlled direct injection |
| Rated power (rated speed) | 92kW@2200rpm |
| Maximum torque (torque/speed) | 480@1300~1600 NM/rpm |
| Cooling method | Water cooling |
| Climbing ability | 35° |
| Grounding specific voltage | 41.5 kPa |
| Maximum digging force of the boom (ISO) | 64.9 kN |
| Maximum digging force of the bucket (ISO) | 89.8 kN |
| Length (transportation status) | 7750 mm |
| Overall width (standard track configuration) | 2490 mm |
| High (transportation status) | 2910 mm |
| Minimum ground clearance | 440 mm |
| chassis wheelbase | 2930 mm |
| Underframe gauge | 1990 mm |
| Track width (standard) | 500 mm |
| Maximum excavation height | 8760 mm |
| Maximum excavation radius | 8300 mm |
| Maximum excavation depth | 5470 mm |
| Maximum unloading height | 6310 mm |
