| Bucket Capacity: 2.0m³ |
| Machine Weight : 39000kg |
| Year: 2026 |
| Brand: LIUGONG |
| Shipping: Bulk cargo / Container/Flat Rack |

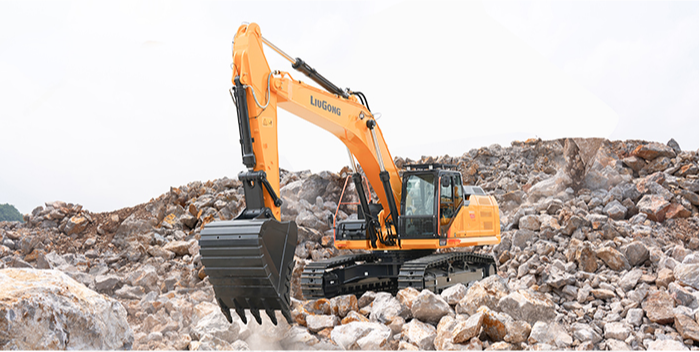

LIUGONG 939FMAX+
Why Choose Us
We have a strong mechanical team to ensure that all machines are well maintained, of high quality, and 100% original.
Spare parts are available, the most suitable for your machine.
We offer almost all types of second-hand construction machinery in good condition and at low prices.
Product Introduction
| Machine weight | 39,000 kg |
| power | 254kW@1900rpm |
| Standard bucket capacity | 2.0 m³ |
| Engine Model | Cummins L9 |
| Emission standards | National IV |
| Type | Twin axial variable displacement piston pump |
| Rated power (rated speed) | 254 kW@1900 rpm |
| Maximum torque (torque/speed) | 1520 Nm@1200 r/min |
| Cooling method | Water cooling |
| Rotation speed | 10 r/min |
| Climbing ability | 35° |
| Grounding specific voltage | 71.2 kPa |
| Maximum digging force of the boom (ISO) | 3200mm boom: 185 kN; 2900mm boom: 214 kN; 2600mm boom: 229 kN |
| Maximum digging force of the bucket (ISO) | 255 kN |
| Length (transportation status) | 11450 mm |
| Overall width (standard track configuration) | 3190 mm |
| High (transportation status) | 3800 mm |
| chassis wheelbase | 4140 mm |
| Underframe gauge | 2590 mm |
| Track width (standard) | 3190 mm |
| Maximum excavation height | 10240/9818/9830 mm |
| Maximum excavation radius | 11100/10728/10560 mm |
| Maximum excavation depth | 7340/6890/6730 mm |
| Maximum unloading height | 7160/6655/6900 mm |
