| Bucket Capacity: 1.5m³ |
| Machine Weight : 26000kg |
| Year: 2026 |
| Brand: LIUGONG |
| Shipping: Bulk cargo / Container/Flat Rack |

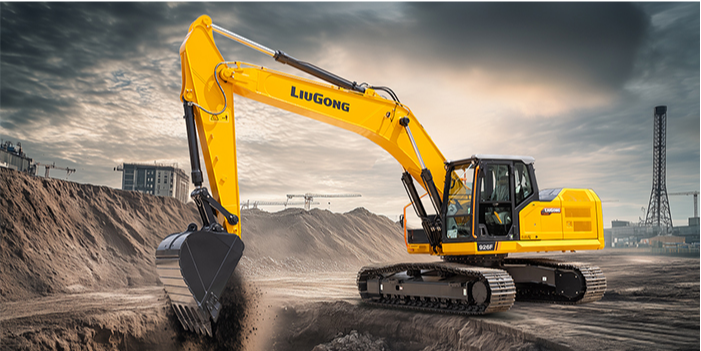

LIUGONG 926F
Why Choose Us
We have a strong mechanical team to ensure that all machines are well maintained, of high quality, and 100% original.
Spare parts are available, the most suitable for your machine.
We offer almost all types of second-hand construction machinery in good condition and at low prices.
Product Introduction
| Machine weight | 26000 kg |
| power | 180kW@2200rpm |
| Standard bucket capacity | 1.5 m³ |
| Engine Model | Cummins B7 |
| Emission standards | National IV |
| Type | 6-cylinder inline, turbocharged, electronically controlled direct injection |
| Rated power (rated speed) | 180kW@2200rpm |
| Maximum torque (torque/speed) | 850/1400 N·m |
| Cooling method | Water cooling |
| Rotation speed | 12 r/min |
| Climbing ability | 35° |
| Grounding specific voltage | 54 kPa |
| Maximum digging force of the boom (ISO) | 128 kN |
| Maximum digging force of the bucket (ISO) | 179 kN |
| Length (transportation status) | 10230 mm |
| Overall width (standard track configuration) | 3190 mm |
| High (transportation status) | 2815 mm |
| chassis wheelbase | 3650 mm |
| Underframe gauge | 2590 mm |
| Track width (standard) | 600 mm |
| Maximum excavation height | 10075 mm |
| Maximum excavation radius | 10340 mm |
| Maximum excavation depth | 6925 mm |
| Maximum unloading height | 6920 mm |
