| Bucket Capacity: 2.6m³ |
| Machine Weight : 47000-49000kg |
| Year: 2026 |
| Brand: LIUGONG |
| Shipping: Bulk cargo / Container/Flat Rack |

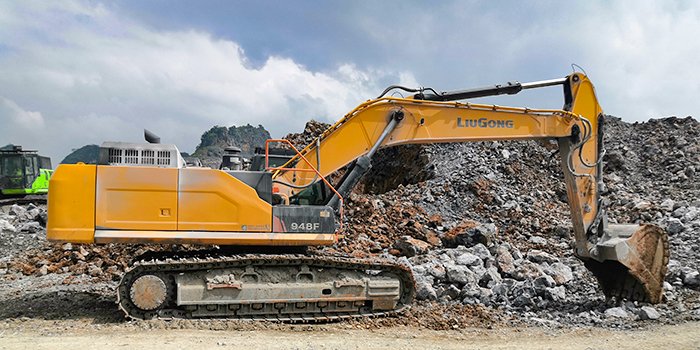

LIUGONG 948F
Why Choose Us
We have a strong mechanical team to ensure that all machines are well maintained, of high quality, and 100% original.
Spare parts are available, the most suitable for your machine.
We offer almost all types of second-hand construction machinery in good condition and at low prices.
Product Introduction
| Machine weight | 47,000~49,000 kg |
| power | 316 kW @ 1900 rpm |
| Standard bucket capacity | 2.6 m³ |
| Engine Model | Yuchai YCK11430 |
| Emission standards | National IV |
| Type | 6-cylinder inline, turbocharged, air-to-air intercooled, intake throttle valve, high-pressure common rail |
| Rated power (rated speed) | 316 kW @ 1900 rpm |
| Maximum torque (torque/speed) | 2050 Nm@1400 r/min |
| Cooling method | Water cooling |
| Rotation speed | 9.3 r/min |
| Climbing ability | 35° |
| Grounding specific voltage | 84.2 kPa |
| Maximum digging force of the boom (ISO) | 250/270 kN |
| Maximum digging force of the bucket (ISO) | 280/300 kN |
| Length (transportation status) | 12500 mm |
| Overall width (standard track configuration) | 3340 mm |
| High (transportation status) | 3735 mm |
| chassis wheelbase | 4430 mm |
| Underframe gauge | 2740 mm |
| Track width (standard) | 600 mm |
| Maximum excavation height | 10550 mm |
| Maximum excavation radius | 11760 mm |
| Maximum excavation depth | 7610 mm |
| Maximum unloading height | 7320 mm |
